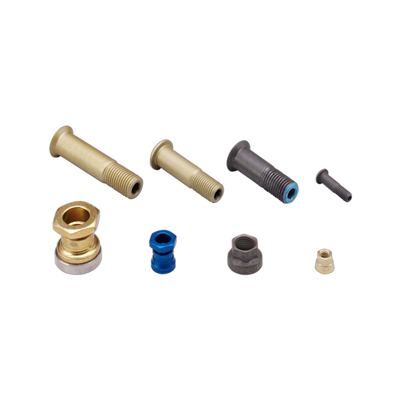

Hi-Tigue Pins

AIAP distributes Hi-Tigue pins a, engineered for maximum fatigue resistance in high-stress applications. The Hi-Tigue fastening system incorporates unique design features that extend the service life of assemblies while reducing maintenance requirements. Our inventory includes a broad selection of Hi-Tigue hardware under standard part numbers and OEM-specific drawings.

Key Features of Hi-Tigue Pins

Interference-fit design – Features a slightly oversized shank with a bead/groove to create a controlled interference fit, significantly enhancing fatigue life.
Superior fatigue resistance – Minimizes crack initiation at fastener holes, ideal for high-cycle aerospace structures.
High-strength materials – Available in titanium, alloy steel, and stainless steel for maximum strength-to-weight performance.
Head configurations – Offered in flush or protruding styles to maintain aerodynamic and structural requirements.
Precision tolerances – Ensures optimal hole-fill and consistent load transfer across the joint.

Key Advantage over Hi-Lok:
Hi-Tigue’s unique interference-fit design delivers superior fatigue life and load transfer, making it the fastener of choice for critical, high-cycle aerospace applications such as wing skins and pressurized fuselage assemblies.

Print Page

PART #	HEAD STYLE	MATERIAL	SHEAR STRENGTH	SHANK DIAMETER	GRIP VARIATION	NEXT O/S	DESCRIPTION
HLT10	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT110
HLT11	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT111
HLT12	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT112
HLT13	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT113
HLT14	PROTRUDING SHEAR	H-11		STD	1/16
HLT15	100 REDUCED FLUSH	H-11		STD	1/16
HLT16	PROTRUDING TENSION	H-11		STD	1/16
HLT17	100 MS24694 FLUSH	H-11		STD	1/16
HLT18	PROTRUDING SHEAR	ALLOY STEEL	95	STD	1/16	HLT118
HLT19	100 REDUCED FLUSH	ALLOY STEEL	95	STD	1/16	HLT119
HLT20	PROTRUDING TENSION	ALLOY STEEL	95	STD	1/16	HLT120
HLT21	100 MS24694 FLUSH	ALLOY STEEL	95	STD	1/16	HLT121
HLT22	PROTRUDING SHEAR	6AL-6V-2SN	108	STD	1/16	HLT122
HLT23	100 REDUCED FLUSH	6AL-6V-2SN	108	STD	1/16	HLT123
HLT24	PROTRUDING TENSION	6AL-6V-2SN	108	STD	1/16	HLT124
HLT25	100 MS24694 FLUSH	6AL-6V-2SN	108	STD	1/16	HLT125
HLT27	100 REDUCED FLUSH	H-11	132	STD	1/16
HLT29	100 MS24694 FLUSH	H-11	132	STD	1/16
HLT30	PROTRUDING SHEAR	431 SST	125	STD	1/16	HLT130
HLT31	100 REDUCED FLUSH	431 SST	125	STD	1/16	HLT131
HLT32	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16
HLT33	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT133
HLT34	PROTRUDING SHEAR	PH13-8MO	125	STD	1/16
HLT35	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16
HLT37	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16
HLT38	PROTRUDING SHEAR	6AL-4V	95	STD	1/16		SHORT THREAD
HLT39	100 MS24694 FLUSH	ALLOY STEEL	108	STD	1/32	HLT139	STEP GRIP
HLT40	PROTRUDING SHEAR	A-286	95	STD	1/16	HLT140
HLT41	100 REDUCED FLUSH	A-286	95	STD	1/16	HLT141
HLT42	PROTRUDING TENSION	A-286	95	STD	1/16	HLT142
HLT43	100 MS24694 FLUSH	A-286	95	STD	1/16	HLT143
HLT44	PROTRUDING SHEAR	A-286	95	STD	1/16	HLT144
HLT45	100 REDUCED FLUSH	A-286	95	STD	1/16	HLT145
HLT46	PROTRUDING TENSION	ALLOY STEEL	108	STD	1/16
HLT47	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16
HLT48	100 FLUSH SHEAR	A-286	95	STD	1/16		SEALING APPLICATION
HLT49	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16
HLT50	PROTRUDING SHEAR	PH13-8M0	125	STD	1/16	HLT150
HLT51	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT151
HLT52	PROTRUDING TENSION	PH13-8MO	125	STD	1/16	HLT152
HLT53	100 MS24694 FLUSH	PH13-8M0	125	STD	1/16	HLT153
HLT54	100 FLUSH SHEAR	H-11	132	STD	1/16		SEALING APPLICATION
HLT55	100 MS20426 FLUSH	6AL-4V	95	STD	1/16	HLT155
HLT56	100 FLUSH SHEAR	ALLOY STEEL	95	STD	1/16		SEALING APPLICATION
HLT57	100 REDUCED FLUSH	A-286	95	STD	1/16	HLT157
HLT58	PROTRUDING SHEAR	A-286	95	STD	1/16	HLT158	SPECIAL HEAD
HLT59	100 MS20426 FLUSH	A-286	95	STD	1/16	HLT159
HLT64	PROTRUDING SHEAR	PH13-8M0	125	STD	1/16		SEALANT INJECTION
HLT65	100 REDUCED FLUSH	A-286
HLT66	PROTRUDING SHEAR	A-286
HLT67	100 MS20426 FLUSH	A-286
HLT68	PROTRUDING TENSION	A-286
HLT69	100 MS24694 FLUSH	A-286
HLT100	PROTRUDING TENSION	6AL-4V	95	4	1/16		1/16 OVERSIZE
HLT101	100 FLUSH REDUCED	6AL-4V	95	STD	1/16		TULIP HEAD
HLT102	PROTRUDING TENSION	6AL-4V	95	3/64	1/16		3/32 OVERSIZE
HLT104	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16
HLT106	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT108	SEALANT INJECTION APPL, 1/64 OVERSIZE
HLT107	100 REDUCED FLUSH	ALLOY STEEL	95	1/64	1/16	HLT207	1/64 OVERSIZE FOR HLT319
HLT108	100 MS24694 FLUSH	6AL-4V	95	1/32	1/16		SEALANT INJECTION APPL, 1/32 OVERSIZE
HLT109	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT209	1/64 OVERSIZE FOR HLT411
HLT110	PROTRUDING SHEAR	6AL-4V	95	1/64	1/16	HLT210	1/64 OVERSIZE FOR HLT10
HLT111	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT211	1/64 OVERSIZE FOR HLT11
HLT112	PROTRUDING TENSION	6AL-4V	95	1/64	1/16	HLT212	1/64 OVERSIZE FOR HLT12
HLT113	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16	HLT213	1/64 OVERSIZE FOR HLT13
HLT114	PROTRUDING SHEAR	ALLOY STEEL	108	STD	1/16	HLT122
HLT115	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16	HLT123
HLT116	PROTRUDING SHEAR	ALLOY STEEL	108	STD	1/16	HLT124	SPECIAL HEAD
HLT118	PROTRUDING SHEAR	ALLOY STEEL	95	1/64	1/16	HLT218	1/64 OVERSIZE FOR HLT18 AND HLT318
HLT119	100 REDUCED FLUSH	ALLOY STEEL	95	1/64	1/16	HLT219	1/64 OVERSIZE FOR HLT19
HLT120	PROTRUDING TENSION	ALLOY STEEL	95	1/64	1/16		1/64 OVERSIZE FOR HLT20
HLT121	100 MS24694 FLUSH	ALLOY STEEL	95	1/64	1/16		1/64 OVERSIZE FOR HLT21
HLT122	PROTRUDING SHEAR	ALLOY STEEL	108	1/64	1/16	HLT126	1/64 OVERSIZE FOR HLT114
HLT123	100 REDUCED FLUSH	ALLOY STEEL	108	1/64	1/16	HLT127	1/64 OVERSIZE FOR HLT115
HLT124	PROTRUDING SHEAR	ALLOY STEEL	108	1/64	1/16	HLT128	SPECIAL HEAD-1/64 OVERSIZE FOR HLT116
HLT125	100 REDUCED FLUSH	ALLOY STEEL	108	1/64	1/16
HLT126	PROTRUDING SHEAR	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE FOR HLT114
HLT127	100 REDUCED FLUSH	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE FOR HLT115
HLT128	PROTRUDING TENSION	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE FOR HLT116
HLT130	PROTRUDING SHEAR	431 SST	125	1/64	1/16	HLT230	1/64 OVERSIZE FOR HLT30
HLT131	100 REDUCED FLUSH	431 SST	125	1/64	1/16	HLT231	1/64 OVERSIZE FOR HLT31
HLT133	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT233	1/64 OVERSIZE FOR HLT33
HLT139	100 MS24694 FLUSH	ALLOY STEEL	108	1/64	1/32	HLT239	STEP GRIP-1/64 OVERSIZE FOR HLT39
HLT140	PROTRUDING SHEAR	A-286	95	1/64	1/16	HLT240	1/64 OVERSIZE FOR HLT40
HLT141	100 REDUCED FLUSH	A-286	95	1/64	1/16	HLT241	1/64 OVERSIZE FOR HLT41
HLT142	PROTRUDING TENSION	A-286	95	1/64	1/16	HLT242	1/64 OVERSIZE FOR HLT42
HLT143	100 MS24694 FLUSH	A-286	95	1/64	1/16	HLT243	1/64 OVERSIZE FOR HLT43
HLT144	PROTRUDING SHEAR	A-286	95	1/64	1/16	HLT244	1/64 OVERSIZE FOR HLT44
HLT145	100 REDUCED FLUSH	A-286	95	1/64	1/16	HLT245	1/64 OVERSIZE FOR HLT45
HLT149	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT249	SHORT THREAD-1/64 OVERSIZE FOR HLT49
HLT150	PROTRUDING SHEAR	PH13-8MO	125	1/64	1/16	HLT250	1/64 OVERSIZE FOR HLT50
HLT151	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT251	1/64 OVERSIZE FOR HLT51
HLT152	PROTRUDING TENSION	PH13-8MO	125	1/64	1/16	HLT252	1/64 OVERSIZE FOR HLT52
HLT153	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT253	1/64 OVERSIZE FOR HLT53
HLT155	100 MS20426 FLUSH	6AL-4V	95	1/64	1/16		1/64 OVERSIZE FOR HLT55
HLT157	100 REDUCED FLUSH	A-286	95	1/64	1/16	HLT257	1/64 OVERSIZE FOR HLT57
HLT158	PROTRUDING SHEAR	A-286	95	1/64	1/16	HLT258	SPECIAL HEAD-1/64 OVERSIZE FOR HLT58
HLT159	100 MS20426 FLUSH	A-286	95	1/64	1/16	HLT259	1/64 OVERSIZE FOR HLT59
HLT165	100 REDUCED FLUSH	A-286	95	1/64	1/16	HLT265	1/64 OVERSIZE FOR HLT65
HLT166	PROTRUDING SHEAR	A-286	95	1/64	1/16	HLT266	1/64 OVERSIZE FOR HLT66
HLT167	100 MS20426 FLUSH	A-286	95	1/64	1/16	HLT267	1/64 OVERSIZE FOR HLT67
HLT168	PROTRUDING TENSION	A-286	95	1/64	1/16	HLT268	1/64 OVERSIZE FOR HLT68
HLT169	100 MS24694 FLUSH	A-286	95	1/64	1/16	HLT269	1/64 OVERSIZE FOR HLT69
HLT200	100 MS20426 FLUSH	PH13-8MO	125	STD	1/16
HLT201	100 MS24694 FLUSH	6AL-4V	95	STD	1/16		SEALANT INJECTION APPL
HLT202	PROTRUDING SHEAR	ALLOY STEEL	95	3/64	1/16
HLT203	100 REDUCED FLUSH	ALLOY STEEL	95	3/64	1/16
HLT204	PROTRUDING TENSION	ALLOY STEEL	95	3/64	1/16
HLT205	100 MS24694 FLUSH	ALLOY STEEL	95	3/64	1/16
HLT206	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT208	SEALANT INJECTION-1/64 OVERSIZE FOR
HLT207	100 REDUCED FLUSH	ALLOY STEEL	95	1/32	1/16		1/32 OVERSIZE FOR HLT319
HLT208	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		SEALANT INJECTION-1/32 OVERSIZE FOR
HLT209	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT411
HLT210	PROTRUDING SHEAR	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT10
HLT211	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT11
HLT212	PROTRUDING TENSION	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT12
HLT213	100 MS24694 FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT13
HLT215	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT217
HLT217	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT229	1/64 OVERSIZE FOR HLT215
HLT218	PROTRUDING SHEAR	ALLOY STEEL	95	1/32	1/16		1/32 OVERSIZE FOR HLT18
HLT219	100 REDUCED FLUSH	ALLOY STEEL	95	1/32	1/16		1/32 OVERSIZE FOT HLT19
HLT223	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT225	SHOULDER PIN
HLT225	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT227	SHOULDER PIN-1/64 OVERSIZE FOR HLT223
HLT227	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		SHOULDER PIN-1/32 OVERSIZE FOR HLT223
HLT229	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT215
HLT230	PROTRUDING SHEAR	431 SST	125	1/32	1/16		1/32 OVERSIZE FOR HLT30
HLT231	100 REDUCED FLUSH	431 SST	125	1/32	1/16		1/32 OVERSIZE FOR HLT31
HLT233	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT33
HLT239	100 MS24694 FLUSH	ALLOY STEEL	108	1/32	1/32		STEP GRIP-1/32 OVERSIZE FOR HLT39
HLT240	PROTRUDING SHEAR	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT40
HLT241	100 REDUCED FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT41
HLT242	PROTRUDING TENSION	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT42
HLT243	100 MS24694 FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT43
HLT244	PROTRUDING SHEAR	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT44
HLT245	100 REDUCED FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT45
HLT249	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT49
HLT250	PROTRUDING SHEAR	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT50
HLT251	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT51
HLT252	PROTRUDING TENSION	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT52
HLT253	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT53
HLT254	100 FLUSH SHEAR	H-11	132	1/32	1/16		SEALING APPLICATION-1/32 OVERSIZE FOR
HLT256	100 FLUSH SHEAR	ALLOY STEEL	95	1/32	1/16		SEALING APPLICATION-1/32 OVERSIZE FOR
HLT257	100 REDUCED FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT57
HLT258	PROTRUDING SHEAR	A-286	95	1/32	1/16		SPECIAL APPL-1/32 0VERSIZE
HLT259	100 MS20426 FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT59
HLT263	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16		SEALANT INJECTION-SHORT THREAD
HLT265	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT206	SEALANT INJECTION
HLT267	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16		SEALANT INJECTION
HLT269	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16		SEALANT INJECTION-SHORT THREAD
HLT301	100 REDUCED FLUSH	455 SST	125	STD	1/16	HLT401
HLT302	PROTRUDING SHEAR	455 SST	125	STD	1/16	HLT402
HLT303	100 MS20426 FLUSH	455 SST	125	STD	1/16	HLT403
HLT304	100 MS24694 FLUSH	INCONEL 718	125	1/64	1/16	HLT404	1/64 OVERSIZE
HLT307	100 REDUCED FLUSH	455 SST	125	STD	1/16	HLT401	INACTIVE
HLT308	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT408	LOCKWIRE LOCK
HLT309	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT409	LOCKWIRE LOCK
HLT310	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT610
HLT311	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT435
HLT312	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT612
HLT313	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT437
HLT314	PROTRUDING SHEAR	H-11	132	STD	1/16	HLT414
HLT315	100 REDUCED FLUSH	H-11	132	STD	1/16	HLT415
HLT316	PROTRUDING TENSION	H-11	132	STD	1/16	HLT416
HLT317	100 MS24694 FLUSH	H-11	132	STD	1/16	HLT417
HLT318	PROTRUDING SHEAR	ALLOY STEEL	95	STD	1/16	HLT118
HLT319	100 REDUCED FLUSH	ALLOY STEEL	95	STD	1/16	HLT107
HLT320	PROTRUDING TENSION	ALLOY STEEL	95	STD	1/16
HLT321	100 MS24694 FLUSH	ALLOY STEEL	95	STD	1/16
HLT323	100 MS20426 FLUSH	H-11	132	STD	1/16
HLT324	PROTRUDING TENSION	ALLOY STEEL	95	STD	1/16
HLT330	PROTRUDING SHEAR	6AL-4V	95	STD	1/16
HLT333	100 FLUSH SHEAR	6AL-4V	95	STD	1/16	HLT433
HLT334	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT434
HLT335	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT435
HLT336	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT436
HLT337	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT437
HLT338	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT438
HLT339	100 MS20426 FLUSH	6AL-4V	95	STD	1/16	HLT439
HLT340	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT440
HLT341	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT441
HLT344	PROTRUDING TENSION	6AL-4V	95	STD	1/16
HLT345	100 FLUSH SHEAR	6AL-4V	95	STD	1/16
HLT346	PROTRUDING SHEAR	H-11	132	STD	1/16	HLT446
HLT347	100 REDUCED FLUSH	H-11	132	STD	1/16	HLT447
HLT348	PROTRUDING TENSION	H-11	132	STD	1/16	HLT448
HLT349	100 MS24694 FLUSH	H-11	132	STD	1/16	HLT449
HLT355	100 MS20426 FLUSH	H-11	132	STD	1/16
HLT357	100 REDUCED FLUSH	H-11	132	STD	1/16
HLT359	100 REDUCED FLUSH	ALLOY STEEL	95	STD	1/16
HLT361	100 MS24694 FLUSH	ALLOY STEEL	108	STD	1/16
HLT363	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16
HLT364	PROTRUDING SHEAR	6AL-4V	95	STD	1/16		SHORT THREAD
HLT365	100 REDUCED FLUSH	6AL-4V	95	STD	1/16		SHORT THREAD
HLT369	100 REDUCED FLUSH	ALLOY STEEL	95	STD	1/16
HLT401	100 REDUCED FLUSH	A-286	95	STD	1/16
HLT403	100 MS24694 FLUSH	A-286	95	STD	1/16
HLT408	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16		LOCKWIRE LOCK-1/64 OVERSIZE FOR HLT309
HLT409	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16		LOCKWIRE LOCK-1/64 OVERSIZE FOR HLT308
HLT410	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT110	SAME AS HLT10 EXCEPT DIAMETER
HLT411	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT109	SAME AS HLT11 EXCEPT DIAMETER
HLT412	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT112	SAME AS HLT12 EXCEPT DIAMETER
HLT413	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT113	SAME AS HLT13 EXCEPT DIAMETER
HLT414	PROTRUDING SHEAR	H-11	132	1/64	1/16	HLT614	1/64 OVERSIZE FOR HLT314
HLT415	100 REDUCED FLUSH	H-11	132	1/64	1/16	HLT615	1/64 OVERSIZE FOR HLT315
HLT416	PROTRUDING TENSION	H-11	132	1/64	1/16	HLT616	1/64 OVERSIZE FOR HLT316
HLT417	100 MS24694 FLUSH	H-11	132	1/64	1/16	HLT617	1/64 OVERSIZE FOR HLT317
HLT419	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16
HLT420	PROTRUDING SHEAR	INCONEL 718	125	STD	1/16	HLT620
HLT421	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16	HLT621
HLT422	PROTRUDING TENSION	INCONEL 718	125	STD	1/16	HLT622
HLT423	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16	HLT623
HLT425	100 MS20426 FLUSH	ALLOY STEEL	108	1/64	1/16	HLT625
HLT426	PROTRUDING TENSION	ALLOY STEEL	95	1/64	1/16	HLT626
HLT427	100 MS24694 FLUSH	ALLOY STEEL	95	1/64	1/16	HLT627
HLT428	PROTRUDING SHEAR	ALLOY STEEL	108	1/64	1/16	HLT628
HLT429	100 REDUCED FLUSH	ALLOY STEEL	108	1/64	1/16	HLT629	SUPERCEEDED BY HLT1001
HLT433	100 FLUSH SHEAR	6AL-4V	95	1/64	1/16	HLT933	SEALING APPLICATION-1/64 OVERSIZE FOR
HLT434	PROTRUDING SHEAR	6AL-4V	95	1/64	1/16	HLT634	1/64 OVERSIZE FOR HLT334
HLT435	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT635	1/64 OVERSIZE FOR HLT311 AND HLT335
HLT436	PROTRUDING TENSION	6AL-4V	95	1/64	1/16	HLT636	1/64 OVERSIZE FOR HLT336
HLT437	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16	HLT637	1/64 OVERSIZE FOR HLT313 AND HLT337
HLT438	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT638	1/64 OVERSIZE FOR HLT338
HLT439	100 MS20426 FLUSH	6AL-4V	95	1/64	1/16	HLT639	1/64 OVERSIZE FOR HLT339
HLT440	PROTRUDING SHEAR	6AL-4V	95	1/64	1/16	HLT640	1/64 OVERSIZE FOR HLT340
HLT441	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT641	1/64 OVERSIZE FOR HLT341
HLT446	PROTRUDING SHEAR	H-11	132	1/64	1/16	HLT646	1/64 OVERSIZE FOR HLT346
HLT447	100 REDUCED FLUSH	H-11	132	1/64	1/16	HLT647	1/64 OVERSIZE FOR HLT347
HLT448	PROTRUDING TENSION	H-11	132	1/64	1/16	HLT648	1/64 OVERSIZE FOR HLT348
HLT449	100 MS24694 FLUSH	H-11	132	1/64	1/16	HLT649	1/64 OVERSIZE FOR HLT349
HLT450	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT434
HLT451	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT435
HLT452	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT436
HLT453	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT437
HLT465	100 MS20426 FLUSH	INCONEL 718	125	STD	1/16	HLT665
HLT466	PROTRUDING SHEAR	INCONEL 718	132	1/64	1/16	HLT666
HLT467	100 REDUCED FLUSH	INCONEL 718	132	1/64	1/16	HLT667
HLT500	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT700
HLT501	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT701
HLT502	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT702
HLT503	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT703
HLT505	130 FLUSH SHEAR	6AL-4V	95	STD	1/16	HLT605
HLT507	130 FLUSH SHEAR	INCONEL 718	125	STD	1/16	HLT607
HLT509	100 FLUSH SHEAR	ALLOY STEEL	108	STD	1/16
HLT510	PROTRUDING SHEAR	6AL-4V6	95	STD	1/16
HLT511	100 REDUCED FLUSH	6AL-4V	95	STD	1/16
HLT512	PROTRUDING TENSION	6AL-4V	95	STD	1/16
HLT513	100 MS24694 FLUSH	6AL-4V	95	STD	1/16
HLT515	100 MS20426 FLUSH	6AL-4V	95	STD	1/16	HLT729
HLT517	100 FLUSH TENSION	6AL-4V	95	STD	1/16	HLT729
HLT518	PROTRUDING SHEAR	ALLOY STEEL	95	STD	3/32		BREAK-STEM
HLT519	100 REDUCED FLUSH	ALLOY STEEL	95	STD	3/32		BREAK-STEM
HLT521	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16
HLT530	PROTRUDING SHEAR	6AL-4V	95	STD	1/16		BREAK-STEM
HLT531	100 REDUCED FLUSH	6AL-4V	95	STD	1/16		BREAK-STEM
HLT532	PROTRUDING TENSION	6AL-4V	95	STD	1/16		BREAK-STEM
HLT533	100 MS24694 FLUSH	6AL-4V	95	STD	1/16		BREAK-STEM
HLT534	PROTRUDING SHEAR	6AL-6V-2SN	108	STD	1/16	HLT734
HLT535	100 REDUCED FLUSH	6AL-6V-2SN	108	STD	1/16	HLT735
HLT536	PROTRUDING TENSION	6AL-6V-2SN	108	STD	1/16	HLT736
HLT537	100 MS24694 FLUSH	6AL-6V-2SN	108	STD	1/16	HLT737
HLT538	100 REDUCED FLUSH	6AL-6V-2SN	108	STD	1/16	HLT738
HLT539	100 MS20426 FLUSH	6AL-6V-2SN	108	STD	1/16	HLT739
HLT540	PROTRUDING SHEAR	A-286	95	STD	1/16	HLT740
HLT541	100 REDUCED FLUSH	A-286	95	STD	1/16	HLT741
HLT545	100 MS20426 FLUSH	6AL-4V	95	STD	1/16	HLT745
HLT546	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT746
HLT547	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT747
HLT548	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT748
HLT549	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT749
HLT551	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT751
HLT552	PROTRUDING SHEAR	PH13-8MO	125	STD	1/16	HLT752
HLT553	100 MS20426 FLUSH	PH13-8MO	125	STD	1/16	HLT753
HLT554	PROTRUDING TENSION	PH13-8MO	125	STD	1/16	HLT754
HLT555	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT755
HLT556	PROTRUDING TENSION	6AL-4V	95	STD	1/16		BREAK-STEM
HLT557	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT751
HLT559	100 FLUSH SHEAR	PH13-8MO	125	STD	1/16		SEALING APPLICATION
HLT560	PROTRUDING SHEAR	MP35N	132	STD	1/16	HLT760
HLT561	100 REDUCED FLUSH	MP35N	132	STD	1/16	HLT761
HLT562	PROTRUDING TENSION	MP35N	132	STD	1/16	HLT762
HLT563	100 MS24694 FLUSH	MP35N	132	STD	1/16	HLT763
HLT564	PROTRUDING SHEAR	PH13-8MO	125	STD	1/16	HLT764
HLT565	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT765
HLT567	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT967	SEALANT INJECTION
HLT569	70 FLUSH CROWN	6AL-4V	95	STD	1/16
HLT601	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16
HLT602	PROTRUDING SHEAR	INCONEL 718	108	STD	1/16	HLT604
HLT603	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16
HLT604	PROTRUDING SHEAR	INCONEL 718	108	1/64	1/16	HLT606	1/64 OVERSIZE FOR HLT602
HLT605	130 FLUSH SHEAR	6AL-4V	95	1/64	1/16	HLT735	1/64 OVERSIZE FOR HLT505
HLT606	PROTRUDING SHEAR	INCONEL 718	108	1/32	1/16		1/32 OVERSIZE FOR HLT602
HLT607	130 FLUSH SHEAR	INCONEL 718	125	1/64	1/16	HLT737	1/64 OVERSIZE FOR HLT507
HLT608	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		LOCKWIRE LOCK
HLT609	100 MS24694 FLUSH	6AL-4V	95	1/32	1/16		LOCKWIRE LOCK
HLT610	PROTRUDING SHEAR	6AL-4V	95	1/64	1/16	HLT710	1/64 OVRESIZE FOR HLT310
HLT612	PROTRUDING TENSION	6AL-4V	95	1/64	1/16	HLT712	1/64 OVERSIZE FOR HLT312
HLT613	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16	HLT713	1/64 OVERSIZE FOR HLT313
HLT614	PROTRUDING SHEAR	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT314
HLT615	100 REDUCED FLUSH	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT315
HLT616	PROTRUDING TENSION	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT316
HLT617	100 MS24694 FLUSH	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT317
HLT620	PROTRUDING SHEAR	INCONEL 718	125	1/64	1/16	HLT714	1/64 OVERSIZE FOR HLT420
HLT621	100 REDUCED FLUSH	INCONEL 718	125	1/64	1/16	HLT715	1/64 OVERSIZE FOR HLT421
HLT622	PROTRUDING TENSION	INCONEL 718	125	1/64	1/16	HLT716	1/64 OVERSIZE FOR HLT422
HLT623	100 MS24694 FLUSH	INCONEL 718	125	1/64	1/16	HLT717	1/64 OVERSIZE FOR HLT423
HLT625	100 MS20426 FLUSH	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE
HLT626	PROTRUDING TENSION	ALLOY STEEL	95	1/32	1/16		1/32 OVERSIZE
HLT627	100 MS24694 FLUSH	ALLOY STEEL	95	1/32	1/16		1/32 OVERSIZE
HLT628	PROTRUDING SHEAR	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE
HLT629	100 REDUCED FLUSH	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE
HLT631	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT731
HLT633	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT733
HLT634	PROTRUDING SHEAR	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT451, HLT335, AND
HLT635	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT335 AND HLT311
HLT636	PROTRUDING TENSION	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT336
HLT637	100 MS24694 FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT313 AND HLT337
HLT638	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT438
HLT639	100 MS20426 FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT439
HLT640	PROTRUDING SHEAR	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT340 AND HLT440
HLT641	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT341 AND HLT441
HLT642	PROTRUDING SHEAR	PH13-8MO	117	STD	1/16	HLT650
HLT643	100 REDUCED FLUSH	PH13-8MO	117	STD	1/16	HLT651
HLT644	PROTRUDING TENSION	PH13-8MO	117	STD	1/16	HLT652
HLT645	100 MS24694 FLUSH	PH13-8MO	117	STD	1/16	HLT653
HLT646	PROTRUDING SHEAR	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT346
HLT647	100 REDUCED FLUSH	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT347
HLT648	PROTRUDING TENSION	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT348
HLT649	100 MS24694 FLUSH	H-11	132	1/32	1/16		1/32 OVERSIZE FOR HLT349
HLT650	PROTRUDING SHEAR	PH13-8MO	117	1/64	1/16	HLT700	1/64 OVERSIZE FOR HLT642
HLT651	100 REDUCED FLUSH	PH13-8MO	117	1/64	1/16	HLT701	1/64 OVERSIZE FOR HLT643
HLT652	PROTRUDING TENSION	PH13-8MO	117	1/64	1/16	HLT702	1/64 OVERSIZE FOR HLT644
HLT653	100 MS24694 FLUSH	PH13-8MO	117	1/64	1/16	HLT703	1/64 OVERSIZE FOR HLT645
HLT665	100 MS20426 FLUSH	INCONEL 718	125	1/64	1/16
HLT666	PROTRUDING SHEAR	INCONEL 718	132	1/32	1/16
HLT667	100 REDUCED FLUSH	INCONEL 718	132	1/32	1/16
HLT700	PROTRUDING SHEAR	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT500
HLT701	100 REDUCED FLUSH	PH13-8MO	117	1/32	1/16		1/32 OVERSIZE FOR HLT501
HLT702	PROTRUDING TENSION	PH13-8MO	117	1/32	1/16		1/32 OVERSIZE FOR HLT502
HLT703	100 MS24694 FLUSH	PH13-8MO	117	1/32	1/16		1/32 OVERSIZE FOR HLT503
HLT704	PROTRUDING SHEAR	PH13-8MO	115	STD	1/16	HLT706
HLT705	100 REDUCED FLUSH	PH13-8MO	115	STD	1/16	HLT707
HLT706	PROTRUDING SHEAR	PH13-8MO	115	1/64	1/16	HLT708	1/64 OVERSIZE FOR HLT704
HLT707	100 REDUCED FLUSH	PH13-8MO	115	1/64	1/16	HLT709	1/64 OVERSIZE FOR HLT705
HLT708	PROTRUDING SHEAR	PH13-8MO	115	1/32	1/16		1/32 OVERSIZE FOR HLT704
HLT709	100 REDUCED FLUSH	PH13-8MO	115	1/32	1/16		1/32 OVERSIZE FOR HLT705
HLT710	PROTRUDING SHEAR	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT310
HLT711	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT311
HLT712	PROTRUDING TENSION	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT312
HLT714	PROTRUDING SHEAR	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT420
HLT715	100 REDUCED FLUSH	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT421
HLT716	PROTRUDING TENSION	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT422
HLT717	100 MS24694 FLUSH	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT423
HLT719	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16
HLT721	100 MS20426 FLUSH	ALLOY STEEL	95	STD	1/16
HLT722	PROTRUDING SHEAR	PH13-8MO	115	STD	1/16	HLT724	LOCKWIRE LOCK
HLT723	100 REDUCED FLUSH	PH13-8MO	115	STD	1/16	HLT725	LOCKWIRE LOCK
HLT724	PROTRUDING SHEAR	PH13-8MO	115	1/64	1/16	HLT726	LOCKWIRE LOCK
HLT725	100 REDUCED FLUSH	PH13-8MO	115	1/64	1/16	HLT727	LOCKWIRE LOCK
HLT726	PROTRUDING SHEAR	PH13-8MO	115	1/32	1/16		LOCKWIRE LOCK
HLT727	100 REDUCED FLUSH	PH13-8MO	115	1/32	1/16		LOCKWIRE LOCK
HLT729	100 FLUSH TENSION	6AL-4V	95	1/64	1/16	HLT829
HLT731	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16		1/64 OVERSIZE FOR HLT631
HLT735	130 FLUSH SHEAR	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT505 AND HLT605
HLT737	130 FLUSH SHEAR	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT507 AND HLT607
HLT740	PROTRUDING SHEAR	A-286	95	1/64	1/16	HLT840
HLT741	100 REDUCED FLUSH	A-286	95	1/64	1/16	HLT841
HLT745	100 MS20426 FLUSH	6AL-4V	95	1/64	1/16	HLT845
HLT746	PROTRUDING SHEAR	6AL-4V	95	1/64	1/16	HLT846
HLT747	100 REDUCED FLUSH	6AL-4V	95	1/64	1/16	HLT847	1/64 OVERSIZE FOR HLT547
HLT748	PROTRUDING TENSION	6AL-4V	95	1/64	1/16	HLT848
HLT749	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16	HLT849
HLT750	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16
HLT751	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT851	1/64 OVERSIZE FOR HLT551
HLT752	PROTRUDING SHEAR	PH13-8MO	125	1/64	1/16	HLT852	1/64 OVERSIZE FOR HLT552
HLT753	100 MS20426 FLUSH	PH13-8MO	125	1/64	1/16	HLT853	1/64 OVERSIZE FOR HLT553
HLT754	PROTRUDING TENSION	PH13-8MO	125	1/64	1/16	HLT854	1/64 OVERSIZE FOR HLT554
HLT755	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT855	1/64 OVERSIZE FOR HLT555
HLT757	100 REDUCED FLUSH	INCONEL 718	108	STD	1/16	HLT767
HLT758	PROTRUDING TENSION	INCONEL 718	108	STD	1/16	HLT768
HLT759	100 MS20426 FLUSH	INCONEL 718	108	STD	1/16	HLT769
HLT760	PROTRUDING SHEAR	MP35N	132	1/64	1/16	HLT860	1/64 OVERSIZE FOR HLT560
HLT761	100 REDUCED FLUSH	MP35N	132	1/64	1/16	HLT861	1/64 OVERSIZE FOR HLT561
HLT762	PROTRUDING TENSION	MP35N	132	1/64	1/16	HLT862	1/64 OVERSIZE FOR HLT562
HLT763	100 MS24694 FLUSH	MP35N	132	1/64	1/16	HLT863	1/64 OVERSIZE FOR HLT563
HLT764	PROTRUDING SHEAR	PH13-8MO	125	1/64	1/16	HLT864	1/64 OVERSIZE FOR HLT564
HLT765	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT865	1/64 OVERSIZE FOR HLT565
HLT767	100 REDUCED FLUSH	INCONEL 718	108	1/64	1/16	HLT867	1/64 OVERSIZE FOR HLT757
HLT768	PROTRUDING TENSION	INCONEL 718	108	1/64	1/16	HLT868	1/64 OVERSIZE FOR HLT758
HLT769	100 MS20426 FLUSH	INCONEL 718	108	1/64	1/16		1/64 OVERSIZE FOR HLT759
HLT771	100 MS24694 FLUSH	INCONEL 718	108	STD	1/16		SPECIAL HEAD MARKING
HLT773	100 FLUSH TENSION	INCONEL 718	108	STD	1/16
HLT803	70 FLUSH CROWN	6AL-4V	95	STD	1/16	HLT807	FOR USE IN INTERFERENCE HOLES AND 82
HLT805	100 REDUCED FLUSH	6AL-4V	95
HLT807	70 FLUSH CROWN	6AL-4V	95	1/64	1/16		1/64 OVERSIZE FOR HLT803
HLT809	70 FLUSH CROWN	6AL-4V	95	1/32	1/16		SHORT THREAD
HLT811	100 MS24694 FLUSH	6AL-4V	95	STD	1/16	HLT817	SPECIAL APPL
HLT813	100 FLUSH SHEAR	6AL-4V	95	STD	1/16		SEALING APPLICATION
HLT817	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16	HLT819	SPECIAL APPL-1/64 OVERSIZE FOR HLT811
HLT819	100 MS24694 FLUSH	6AL-4V	95	1/32	1/16		SPECIAL APPL-1/32 OVERSIZE FOR HLT811
HLT822	PROTRUDING TENSION	INCONEL 718	125	STD	1/16	HLT832
HLT823	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16	HLT839
HLT824	PROTRUDING SHEAR	INCONEL 718	125	STD	1/16
HLT825	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16
HLT827	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16
HLT829	100 TENSION SPECIAL	6AL-4V	95	1/32	1/16		OVERSIZE FOR HLT517 AND HLT729
HLT832	PROTRUDING TENSION	INCONEL 718	125	1/64	1/16	HLT842	1/64 OVERSIZE FOR HLT822
HLT835	100 FLUSH SHEAR	PH13-8MO	125	1/64	1/16
HLT837	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16		SPECIAL THRAED SIZE
HLT839	100 MS24694 FLUSH	INCONEL 718	125	1/64	1/16	HLT859	1/64 OVERSIZE FOR HLT823
HLT840	PROTRUDING SHEAR	A-286	95	1/32	1/16
HLT841	100 REDUCED FLUSH	A-286	95	1/32	1/16
HLT842	PROTRUDING TENSION	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT822
HLT847	100 REDUCED FLUSH	6AL-4V	95	1/32	1/16		1/32 OVERSIZE FOR HLT547
HLT851	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT551
HLT852	PROTRUDING SHEAR	PH13-8M0	125	1/32	1/16		1/32 OVERSIZE FOR HLT552
HLT853	100 MS20426 FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT553
HLT854	PROTRUDING TENSION	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT554
HLT855	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT555
HLT856	PROTRUDING TENSION	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE FOR HLT904
HLT857	100 FLUSH SHEAR	ALLOY STEEL	108	1/32	1/16		1/32 OVERSIZE FOR HLT905
HLT859	100 MS24694 FLUSH	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT823
HLT860	PROTRUDING SHEAR	MP35N	132	1/32	1/16		1/32 OVERSIZE FOR HLT560
HLT861	100 REDUCED FLUSH	MP35N	132	1/32	1/16		1/32 OVERSIZE FOR HLT561
HLT862	PROTRUDING TENSION	MP35N	132	1/32	1/16		1/32 OVERSIZE FOR HLT562
HLT863	100 MS24694 FLUSH	MP35N	132	1/32	1/16		1/32 OVERSIZE FOR HLT563
HLT864	PROTRUDING SHEAR	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT564
HLT865	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		1/32 OVERSIZE FOR HLT565
HLT867	100 REDUCED FLUSH	INCONEL 718	108	1/32	1/16		1/32 OVERSIZE FOR HLT757
HLT868	PROTRUDING TENSION	INCONEL 718	108	1/32	1/16		1/32 OVERSIZE FOR HLT758
HLT871	100 MS24694 FLUSH	INCONEL 718	108	1/64	1/16		SPECIAL HEAD MARKING
HLT873	100 TENSION SPECIAL	INCONEL 718	108	1/64	1/16
HLT900	100 FLUSH SHEAR	6AL-4V	95	STD	1/16	HLT901	LEADIN RADIUS
HLT901	100 FLUSH SHEAR	6AL-4V	95	1/64	1/16	HLT902	LEADIN RADIUS-1/64 OVERSIZE FOR HLT900
HLT902	100 FLUSH SHEAR	6AL-4V	95	1/32	1/16		LEADIN RADIUS-1/32 OVERSIZE FOR HLT900
HLT903	100 FLUSH SHEAR	6AL-4V	95	STD	1/16
HLT904	PROTRUDING TENSION	ALLOY STEEL	108	STD	1/16	HLT908
HLT905	100 FLUSH SHEAR	ALLOY STEEL	108	STD	1/16	HLT909
HLT906	PROTRUDING SHEAR	6AL-6V-2SN	108	STD	1/32
HLT907	100 FLUSH SHEAR	6AL-6V-2SN	108	STD	1/32
HLT908	PROTRUDING TENSION	ALLOY STEEL	108	1/64	1/16	HLT856	1/64 OVERSIZE FOR HLT904
HLT909	100 FLUSH SHEAR	ALLOY STEEL	108	1/64	1/16	HLT857	1/64 OVERSIZE FOR HLT905
HLT911	100 REDUCED FLUSH	6AL-4V	95	STD	1/16
HLT912	PROTRUDING TENSION	6AL-4V	95	STD	1/16	HLT924	LEADIN RADIUS
HLT913	100 REDUCED FLUSH	6AL-4V	95	STD	1/16		BREAK-STEM
HLT914	PROTRUDING SHEAR	6AL-4V	95	STD	1/16		BREAK-STEM
HLT915	100 MS20426 FLUSH	ALLOY STEEL	108	STD	1/16	HLT923
HLT916	PROTRUDING TENSION	ALLOY STEEL	95	STD	1/16	HLT426
HLT917	100 MS24694 FLUSH	ALLOY STEEL	95	STD	1/16	HLT427
HLT919	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16	HLT429
HLT920	PROTRUDING TENSION	ALLOY STEEL	108	STD	1/16	HLT934	LEADIN RADIUS
HLT923	100 MS20426 FLUSH	ALLOY STEEL	108	1/64	1/16	HLT925	1/64 OVERSIZE FOR HLT HLT915
HLT924	PROTRUDING TENSION	6AL-4V	95	1/64	1/16	HLT926	LEADIN RADIUS-1/64 OVERSIZE FOR HLT912
HLT925	100 MS20426 FLUSH	ALLOY STEEL	108	1/32	1/16		1/32 0VERSIZE FOR HLT915
HLT926	PROTRUDING TENSION	6AL-4V	95	1/32	1/16		LEADIN RADIUS-OVERSIZE FOR HLT912 AND
HLT927	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16
HLT930	PROTRUDING SHEAR	ALLOY STEEL	108	STD	1/16		SAME AS HLT18 EXCEPT HEAT TREAT AND
HLT931	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16		SAME AS HLT19 EXCEPT HEAT TREAT AND
HLT933	100 FLUSH SHEAR	6AL-4V	95	1/32	1/16		SEALING APPLICATION-1/32 OVERSIZE FOR
HLT934	PROTRUDING TENSION	ALLOY STEEL	108	1/64	1/16	HLT936	LEADIN RADIUS-1/64 OVERSIZE FOR HLT920
HLT935	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16	HLT937
HLT936	PROTRUDING TENSION	ALLOY STEEL	108	1/32	1/16		LEADIN RADIUS-1/32 OVERSIZE FOR HLT920
HLT937	100 REDUCED FLUSH	INCONEL 718	125	1/64	1/16	HLT939	1/64 OVERSIZE FOR HLT935
HLT939	100 REDUCED FLUSH	INCONEL 718	125	1/32	1/16		1/32 OVERSIZE FOR HLT935
HLT943	100 MS24694 FLUSH	6AL-4V	95	1/64	1/16		SPECIAL THREAD LENGTH
HLT949	100 MS24694 FLUSH	A-286	95	STD	1/16	HLT949X
HLT949X	100 MS24694 FLUSH	A-286	95	1/64	1/16	HLT949Y	1/64 OVERSIZE FOR HLT949
HLT949Y	100 MS24694 FLUSH	A-286	95	1/32	1/16		1/32 OVERSIZE FOR HLT949
HLT950	100 FLUSH SHEAR	ALLOY STEEL	108	STD	1/16	HLT951	LEADIN RADIUS
HLT951	100 FLUSH SHEAR	ALLOY STEEL	108	1/64	1/16	HLT952	LEADIN RADIUS-1/64 OVERSIZE FOR HLT950
HLT952	100 FLUSH SHEAR	ALLOY STEEL	108	1/32	1/16		LEADIN RADIUS-1/32 OVERSIZE FOR HLT950
HLT953	100 MS24694	6AL-4V	95	STD	1/16
HLT967	100 REDUCED FLUSH	PH13-8MO	132	1/32	1/16		SEALANT INJECTION-1/32 OVERSIZE
HLT971	100 MS24694 FLUSH	INCONEL 718	108	1/32	1/16		SPECIAL HEAD MARKING-1/32 OVERSIZE
HLT973	100 FLUSH TENSION	INCONEL 718	108	1/32	1/16
HLT1001	100 REDUCED FLUSH	INCONEL 718	108	1/64	1/16	HLT629	REPLACEMENT FOR HLT429
HLT1002	PROTRUDING SHEAR	6AL-4V	95	STD	1/16	HLT1012
HLT1003	100 REDUCED FLUSH	ALLOY STEEL	108	STD	1/16	HLT1013
HLT1004
HLT1005	100 REDUCED FLUSH	6AL-4V	95	STD	1/16	HLT1015
HLT1007	100 REDUCED FLUSH	PH13-8MO	108	STD	1/16	HLT1017
HLT1021	100 MS24694 FLUSH	PH13-8MO	125	STD	1/16	HLT1031	SHORT THREAD
HLT1029	100 REDUCED FLUSH	PH13-8MO	125	STD	1/16	HLT1039	SHORT THREAD
HLT1031	100 MS24694 FLUSH	PH13-8MO	125	1/64	1/16	HLT1041	SHORT THREAD, 1/64 OVERSIZE FOR
HLT1033	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16
HLT1035	100 REDUCED FLUSH	INCONEL 718	125	STD	1/16
HLT1037	100 MS24694 FLUSH	INCONEL 718	125	STD	1/16
HLT1039	100 REDUCED FLUSH	PH13-8MO	125	1/64	1/16	HLT1039	SHORT THREAD, 1/64 OVERSIZE FOR
HLT1041	100 MS24694 FLUSH	PH13-8MO	125	1/32	1/16		SHORT THREAD, 1/64 OVERSIZE FOR
HLT1049	100 REDUCED FLUSH	PH13-8MO	125	1/32	1/16		SHORT THREAD, 1/64 OVERSIZE FOR

AIAP

An FDH Company

HI-TIGUE PINS

Hi-Tigue Pins

Hi-Tigue Pins

Key Features of Hi-Tigue Pins
